2025 C6 Max-Din Unit Updated Connection Diagram

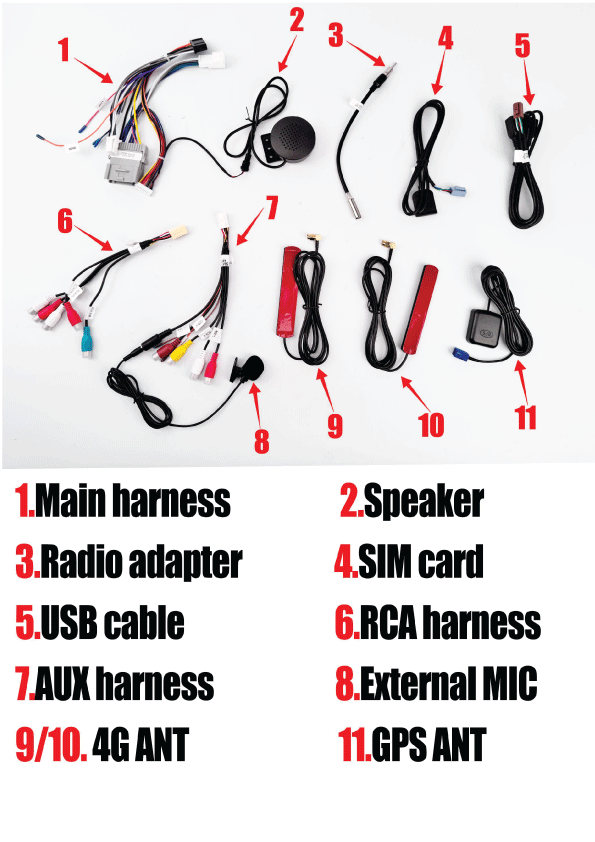

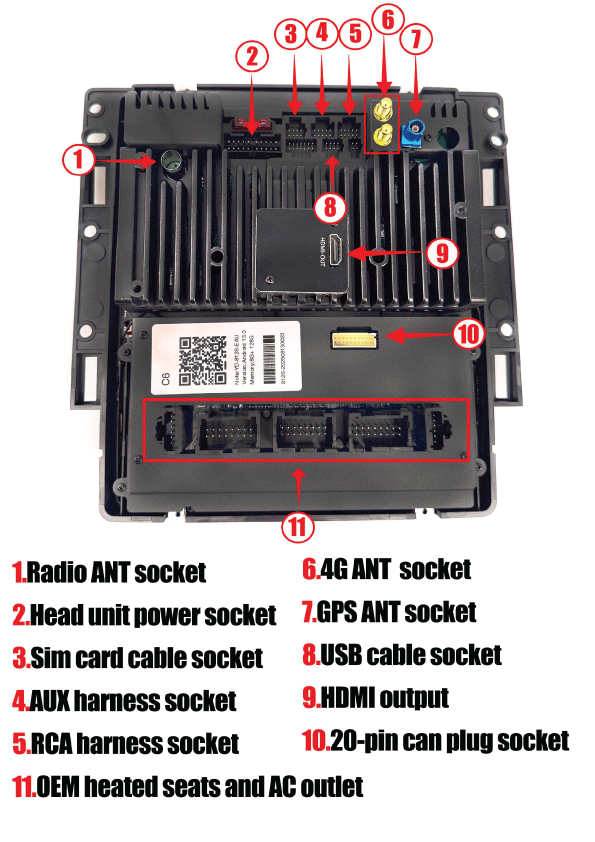

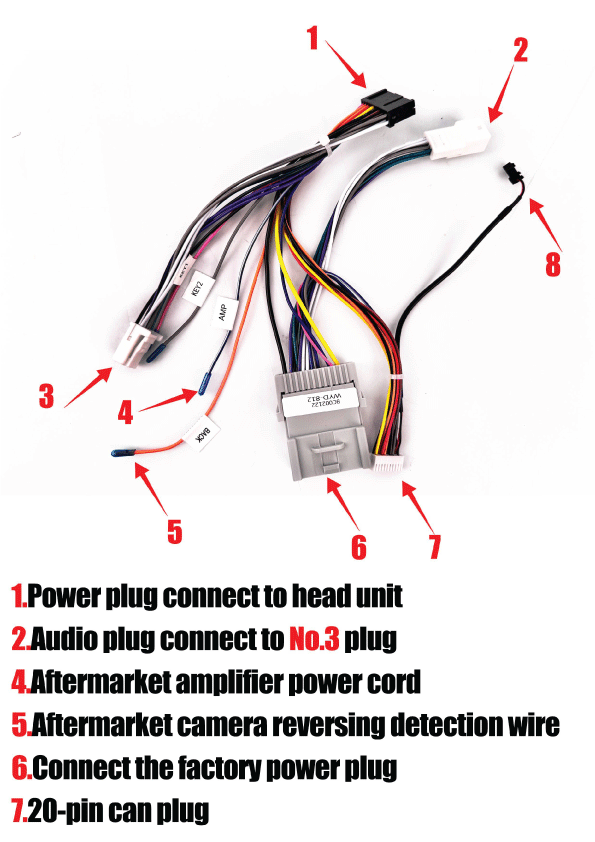

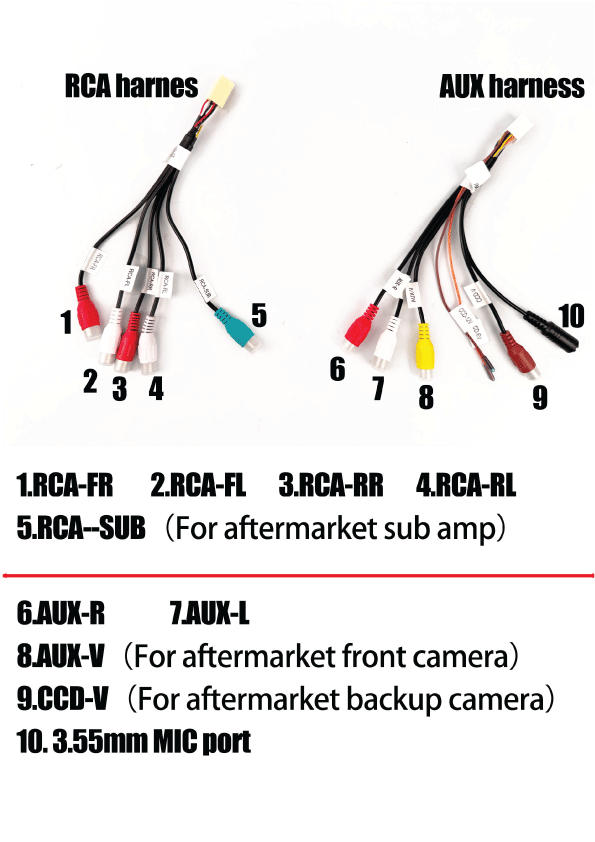

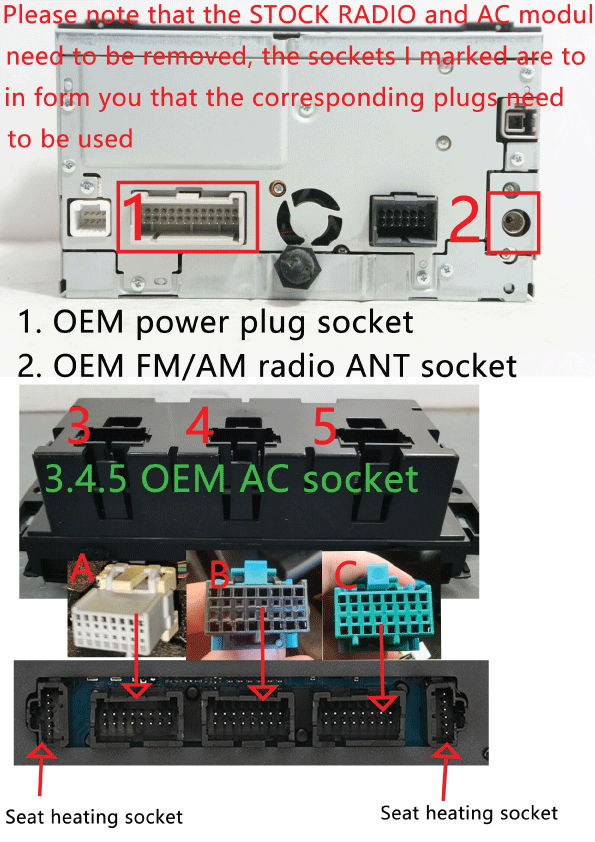

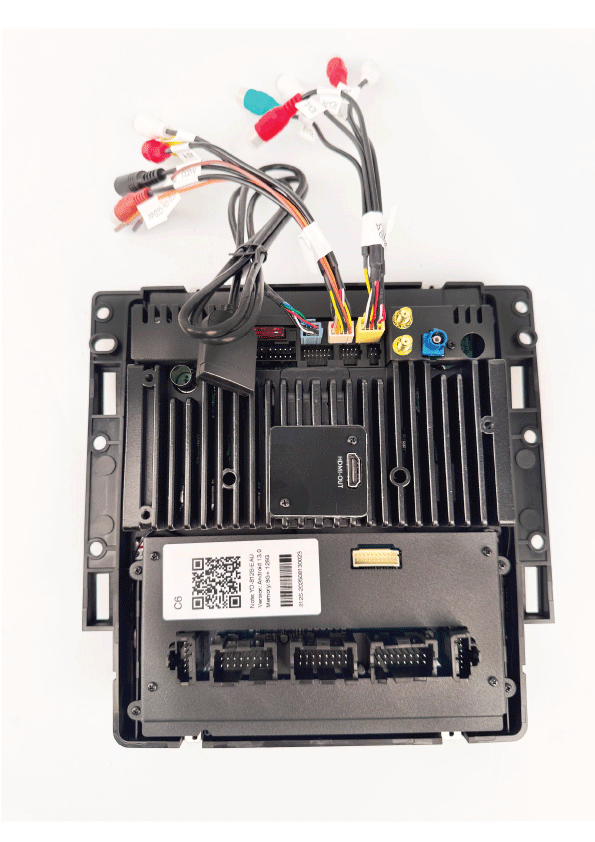

These diagram and wiring connection photos apply to the 2025+ V1.5 C6 Max-Din unit. This clarifies all connections and their purpose/use.
